Two-post lift electromechanical lifting capacity: 3000 kg 2.30 Premium H300
Index: BBPLCON472001
Two-post lift 2.30 Premium H300 asymmetric, lifting capacity 3000kg, drive electromechanical, voltage 400V, total height: 2560-4000, column connection: bottom/top, colour: Black/White
Consul H300 - 2.30 EL Premium Two-Post Lift
Technical Data:
- Universal workshop lift that combines the highest technology with unparalleled durability, which is a hallmark of the brand.
- Advanced technology for the best car workshops
- Low maintenance costs - use of rolling bearings in the guide carriage and self-lubricating system
- Equipped with a microprocessor plate synchronising the operation of two motors
- Low-profile lifting arms
- Electronic motor synchronisation
- Asymmetric lifting arms – three-part at the rear, two-part at the front
- Lifting capacity up to 3000 kg
- Powered by two motors (3 kW each)
Description
Consul H300 - 2.30 EL Premium Two-Post Lift
Technical Data:
- Universal workshop lift that combines the highest technology with unparalleled durability, which is a hallmark of the brand.
- Advanced technology for the best car workshops
- Low maintenance costs - use of rolling bearings in the guide carriage and self-lubricating system
- Equipped with a microprocessor plate synchronising the operation of two motors
- Low-profile lifting arms
- Electronic motor synchronisation
- Asymmetric lifting arms – three-part at the rear, two-part at the front
- Lifting capacity up to 3000 kg
- Powered by two motors (3 kW each)
Technical specification
Market / application
Passenger cars
ProfessionalName
Two-post lift
Model
2.30 Premium H300
Lifting capacity
3000.0kg
Serviced vehicle
delivery "L"
delivery "M"
delivery "S"
passenger "L"
passenger "S"
passenger "XL"
passenger 'M"Drive
electromechanical
Voltage
400.0V
Intended use
Maintenance

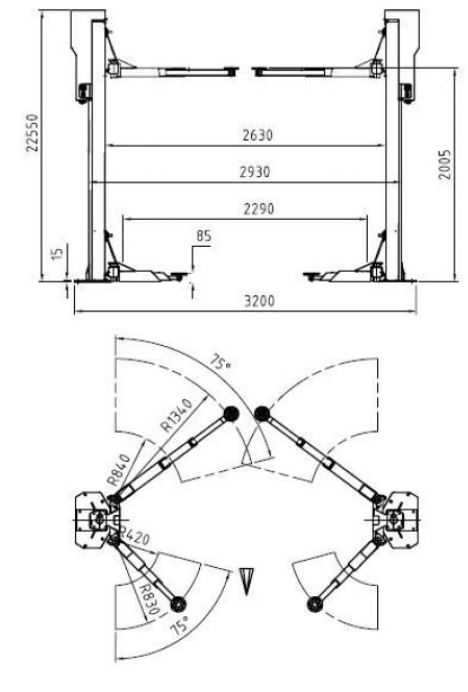

Minimum lifting height
85.0mm
Maximum lifting height
1950.0mm
Min. arm lenght
485.0mm
Max. arm lenght
1340.0mm
Front arms length
430.0mm
830.0mmRear arms length
1340.0mm
840.0mmDrive-through width (without lifting carriage)
2830.0mm
Drive-through width (with lifting carriage)
2390.0mm
Total width
3400.0mm
Lifting time
35.0sec.
Total height
2560-4000mm
Column height
2560.0mm
Column width (top connection)
2560.0mm
4000.0mmConcrete thickness
210.0mm
Concrete class
C20/25 (B25)
Column connection
bottom
topColour
Black
WhiteRAL colour
7035
9005Arm layout (2-column)
asymmetric
